Compact Fractionators providing Deuterium at 30/s

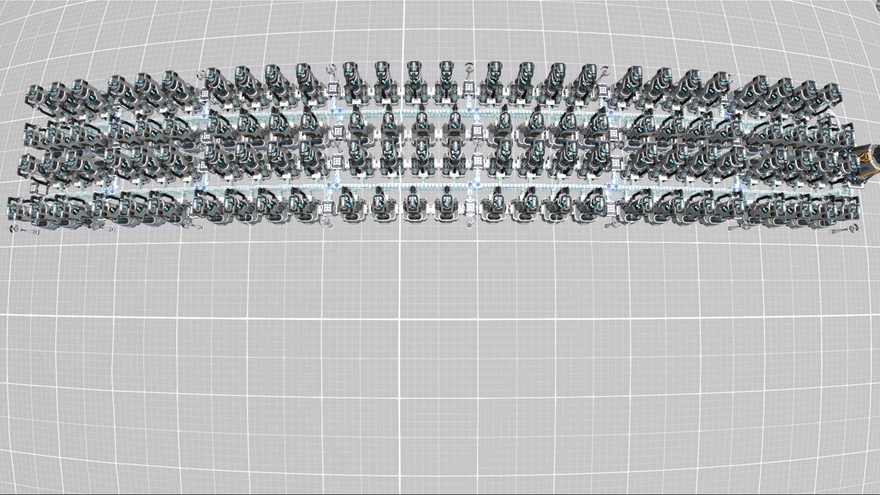

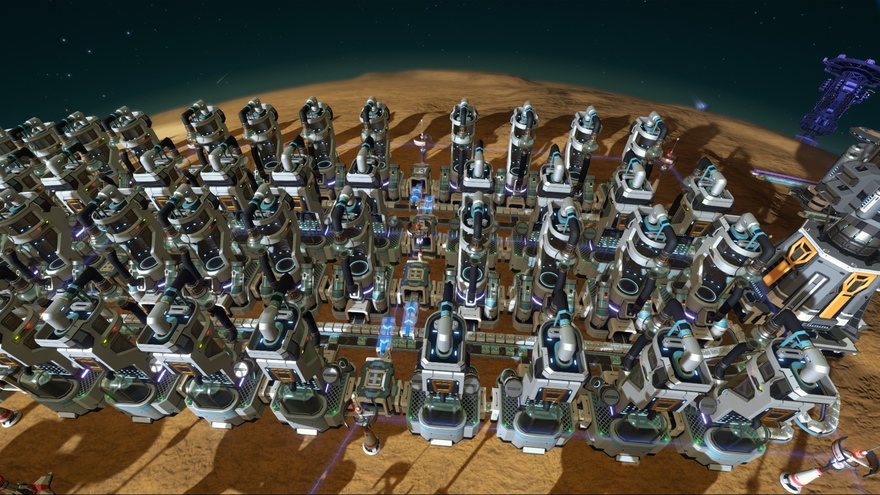

Very compact fractionator design that produces deuterium at just over 30 per sec (or more precisely 30.771 per sec) .  The fractionators are attached to a PLS that needs to be activated by adjusting the capacity of the hydrogen and if necessary giving it some drones.  These can be tiled in both ways as pictured.  To tile then vertically you will need to first remove the power poles on one side.  Due to the very tight spacing of the fractionators this blueprint cannot be placed too close to the tropic lines.

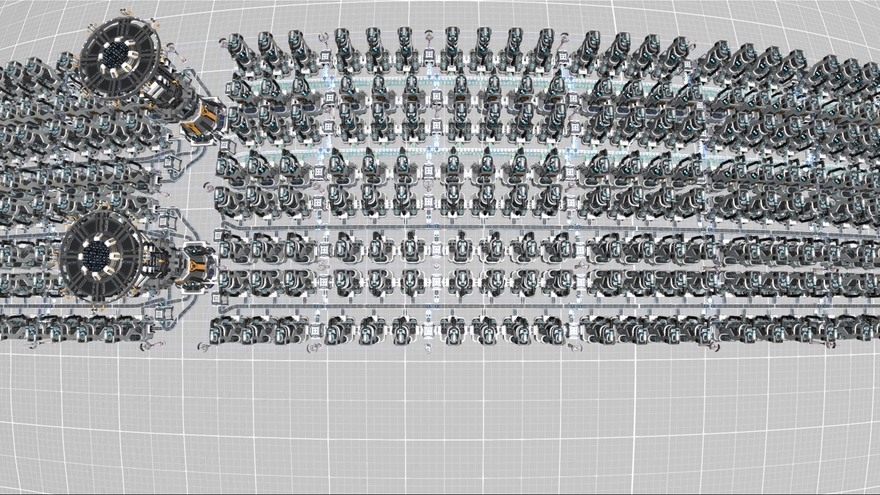

The PLS is provided for convenience and to show how it's hooked up.  A PLS is used instead of a ILS so that the fractionators can be tiled vertically.  If you rather use a ILS but still tile them vertically two units tiled vertically can easily be hooked up to a single ILS.

The unit consists of two independent hydrogen loops so if you only need deuterium at 15 per sec, you can only use one of the halves.

If you use a splitter to provide hydrogen from a single blue belt the unit should theatrically provide deuterium at exactly 30 per sec on average, but this has not been tested.  In theory you can max out a logistics station by hooking 6 of these up to a single logistics station to get deuterium at rate of 180 per sec.  If you want full efficiency and  don't mind making fancy use of splitters you can hook 5 of these up to a single logistics station and get deuterium at a little over 150 per sec (or more precisely 153.853/s).

This is an improvement to my earlier blueprint now titled Compact Fractionators v0.
